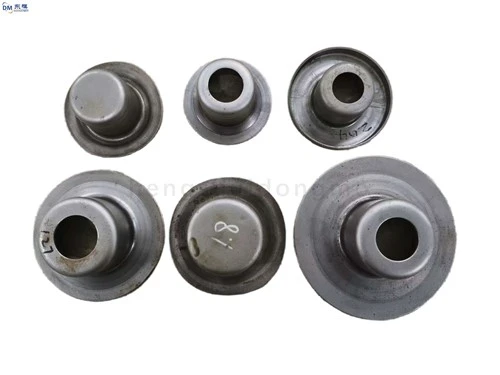

Bearing Hlau Stamping Tuag, Sheet Hlau Punching

I. Qhov tseem ceeb ntawm Stamping Die Trial

Stamping tuag sim yog txheej txheem ua ntej kev tsim khoom los xyuas seb qhov kev tsim tuag ua tau raws li qhov yuav tsum tau ua los ntawm kev simulating cov xwm txheej tiag tiag. Cov kauj ruam no yog qhov tseem ceeb rau kev txheeb xyuas cov teeb meem muaj peev xwm, kho cov txheej txheem tsis zoo, thiab ua kom zoo dua cov qauv tuag. Los ntawm kev sim molding, cov teeb meem xws li qhov sib txawv ntawm qhov sib txawv, qhov tsis zoo ntawm qhov chaw, thiab kev siv cov khoom siv tsawg tuaj yeem txheeb xyuas thiab daws tau raws sijhawm, yog li zam kev poob nyiaj ntau dua thaum tsim khoom loj.

1. Ua kom cov khoom zoo

Thaum lub sij hawm sim molding txheej txheem, kev tshuaj xyuas cov qauv muab kev pom ncaj qha ntawm seb puas muaj qhov tsis xws luag hauv cov khoom, xws li burrs, tawg, thiab deformation. Cov ntaub ntawv no yuav pab kho qhov tuag lossis hloov cov txheej txheem tsis raws sijhawm kom ntseeg tau tias qhov siab - cov qauv zoo ntawm cov khoom kawg.

2. Txhim kho kev tsim khoom

Kev sim ua kom zoo tuaj yeem txheeb xyuas cov teeb meem uas ua rau kev tsim khoom qeeb, xws li tuag jamming thiab hnyav hnyav hnyav hnyav, tso cai rau kev txhim kho zoo sib xws. Qhov no tsis tsuas yog txo qis lub sijhawm tab sis kuj txhim kho kev ua haujlwm tag nrho ntawm cov kab ntau lawm.

II. Tej teeb meem thiab kev soj ntsuam hauv Stamping Die Trial khiav

Txawm hais tias kev sim khiav yog ib feem ntawm kev tiv thaiv kev saib xyuas, ntau yam teeb meem tseem tuaj yeem tshwm sim hauv kev xyaum. Nov yog qee qhov teeb meem thiab lawv cov laj thawj:

1. Dimensional Deviations

Ua rau: Tej zaum yuav yog vim qhov tsim tsis raug tuag, tsis txaus machining raug, lossis cov khoom siv springback.

Cov kev daws teeb meem: Re- soj ntsuam cov qauv tsim, xyuas qhov xwm txheej ntawm cov khoom siv machining, thiab hloov nrog cov khoom siv siab dua - yog tias tsim nyog; xav txog kev siv cov txheej txheem kho cua sov kom tsim nyog los tswj cov khoom siv springback.

2. Qhov teeb meem zoo

Ua rau: suav nrog khawb, abrasions, thiab lwm yam, feem ntau tshwm sim los ntawm lubrication tsis txaus, tsis txaus tuag nto roughness, los yog mismatched khoom hardness.

Cov kev daws teeb meem: txhim kho lub lubrication system, nce tus nqi thiab zaus ntawm kev siv roj nplua nyeem; txhim kho qhov chaw tiav ntawm qhov tuag; xaiv cov khoom tsim nyog hardness los txo kev sib txhuam kev puas tsuaj.

3. Lub neej luv luv

Ua rau: Kev hloov pauv tsis tu ncua ntawm cov khoom hnav (xws li xuas nrig ntaus) thiab cov kev npaj kho tsis tsim nyog tuaj yeem ua rau tuag ntxov ntxov.

Cov kev daws teeb meem: tsis tu ncua tshuaj xyuas thiab hloov cov khoom hnav, tsim ib txoj kev npaj kho kom zoo thiab tsim nyog; siv hnav-cov cuab yeej siv tshuaj tiv thaiv kom ntev kev pab cuam lub neej ntawm cov khoom tseem ceeb.
